AquaGard GT
Chain platform
A stainless chain platform with welded 7ga stands and an open frame, available in curves and plain bends.
- Chain widths
- 83 / 115 / 191 / 305 mm
- Lengths
- To 25,000 mm
- Load
- To 317 kg
- Speed
- To 68 m/min
01 Sanitary conveyor platforms
Sanitary

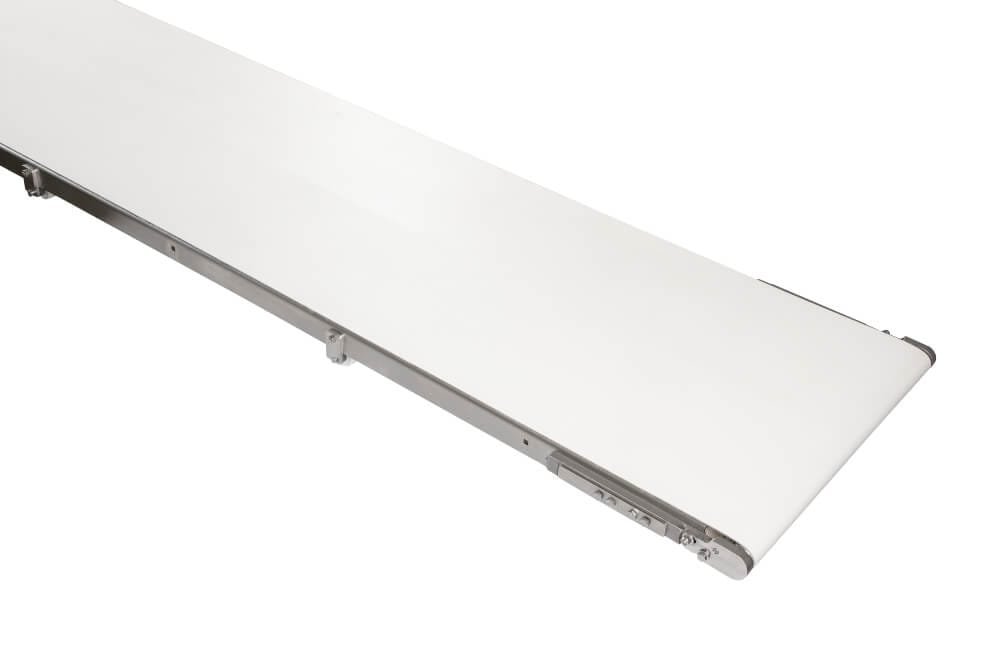

Sanitary Stainless Steel Conveyors
Stainless platforms built to be cleaned: open frames, minimal horizontal surfaces and, at the top of the range, tool-less disassembly and high-pressure washdown.
Sanitary · Stainless frame
- Frame
- 304 stainless steel
- Formats
- Belted, modular, chain
- Cleaning
- Wipe-down to high pressure
02 Overview
Sanitary Stainless Steel Conveyors.
Sanitary platforms are specified by how they will be cleaned, not only by what they carry. The range runs from wipe-down and low-pressure washdown to high-pressure sanitation with tool-less disassembly.
Frame design does the work: open construction, minimal horizontal surfaces and, on the chain platforms, chain openings under 4 mm even through curves.
03 Configurations
Choose by movement and application.
Specifications below are tied to each configuration and should not be applied to the whole platform.
AquaGard 7350
Belted and modular
A 304 stainless frame with an open design and minimal horizontal surfaces, for wipe-down and low-pressure washdown with non-caustic chemicals.
- Widths
- 152–914 mm
- Lengths
- 914–25,000 mm
- Load
- To 341 kg
- Frame
- 304 stainless
AquaPruf
High-pressure sanitation
Continuous TIG-welded 304 stainless with a #4 polish, no horizontal surfaces, tip-up tail and tool-less disassembly for cleaning.
- Spray
- 100–1,500 psi
- Finish
- #4 polish
- Disassembly
- Tool-less
- Belting
- FDA approved
04 Why this platform
What it is good at.
Built for the clean
Open frames and minimal horizontal surfaces, so there is less for product to sit on and less to reach into.
Safe chain
Chain openings under 4 mm even on curves on the chain platforms.
Height range
Top-of-belt heights from 450 mm to 1,950 mm in 25 mm increments on the GT platform.
FDA materials
FDA-approved belting, lubricant and plastic components.
05 Technical comparison
Published specifications
Published maximums depend on the selected model, drive, belt and layout. Confirm the final engineered configuration before purchase.
| Specification | AquaGard GT | AquaGard 7350 | AquaPruf |
|---|---|---|---|
| Widths | 83–305 mm chain | 152–914 mm | 152–914 mm |
| Lengths | To 25,000 mm | 914–25,000 mm | To 25,000 mm |
| Maximum load | 317 kg (700 lb) | 341 kg (750 lb) | Per configuration |
| Frame | Stainless, open | 304 stainless | 304 stainless, TIG welded |
| Cleaning | Open frame | Wipe / low pressure | 100–1,500 psi |
| Curve radius | 457 / 610 mm | Per configuration | Per configuration |
| Top of belt | 450–1,950 mm | Per stand | Per stand |
GT speed is published in the source as 222 ft/min; the metric equivalent is shown. Length increments of 5 mm and height increments of 25 mm apply to the GT platform.
