Sanitary

Sanitary Conveyor Components

Motorized pulleys, sanitary rollers, vertical belt technology, positive end drives and stainless support stands.

Configure with an engineerRequest a quote
  • Drives
  • Rollers
  • Stands
Sanitary vertical belt conveyor componentsSanitary
Page scope
Model and variants
Selection
Application-specific
Support
Roarer engineering

02 Overview

Sanitary Conveyor Components

Motorized pulleys, sanitary rollers, vertical belt technology, positive end drives and stainless support stands.

The published details below are grouped by model, drive, belt or accessory so a figure from one configuration is not presented as universal. Final dimensions and ratings are confirmed against the selected layout.

03 Available range

Models, configurations and components.

Published specifications are kept with the model, drive, belt or accessory they describe. Final ratings depend on the complete engineered configuration.

01

AquaPruf 7600 Ultimate Series Sanitary Conveyors Motorized Pulley

Motorized Pulley Widths: 12” to 46” in 2” increments

  • Benefits of 7600 Ultimate AquaPruf Motorized Pulley
  • All external components are stainless steel
  • Pulley located in conveyor frame with welded supports
  • All frame components are a #4 finish
  • 50,000 hours of operation between oil changes
  • 96% mechanically efficient
02

Aquapruf 7400 Series Sanitary Conveyor Sanitary Roller

Conveyor lengths: 36” to 120” in 3” increments

  • Sanitary Roller Conveyors
  • Benefits of 7400 AquaPruf Sanitary Roller Conveyors
  • Loads up to 20 lbs/roller
  • Roller widths: 8”, 12”, 18”, 24”, 30”, & 36”
  • Frame is all welded with round cross members
  • Frames outer surface is a #4 finish with 2B on internal components
03

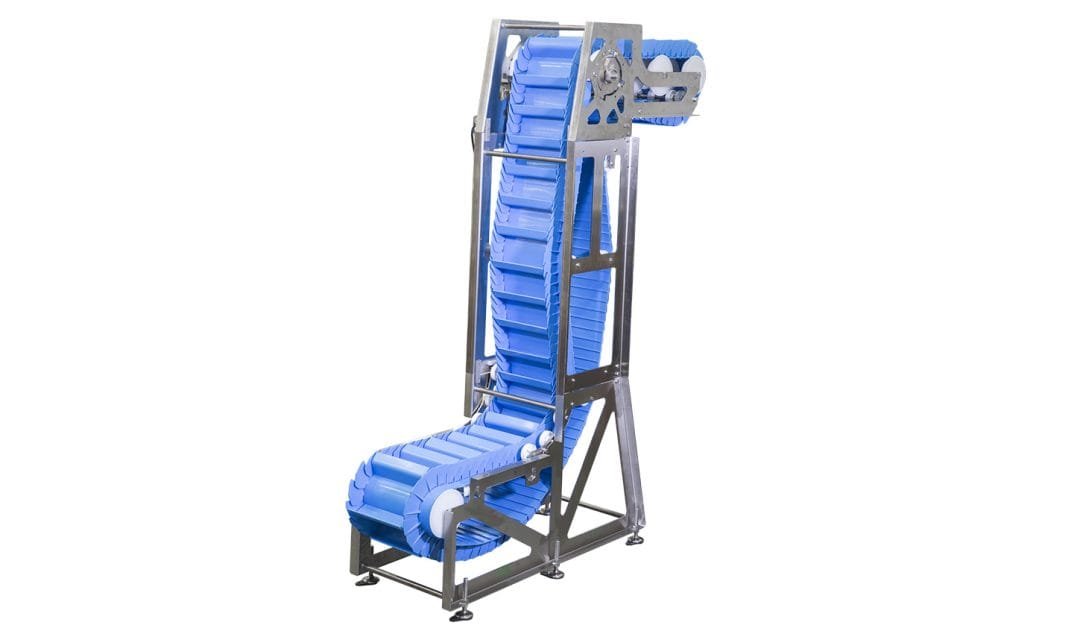

AquaPruf Vertical Belt Technology (VBT) Conveyor

Sanitary Vertical Belt Conveyors for Elevating Bulk Products

  • Belt design features staggered sidewalls to increase pocket capacity and reduce product loss
  • The clean through side wall design improves clean-ability, reduces cleaning time and water usage
  • The open frame design allows for quick belt changes in as little as 15 minutes!
  • Tool-less removal of idlers and belt supports
  • Benefits of AquaPruf 7600 (VBT) Vertical Belt Technology Conveyor
  • This vertical belt technology is used for elevating bulk products like vegetables and fruits, popcorn, grains and nuts, pet food, pharmaceuticals, and small packages. As a sanitary, vertical conveyor belt system, it’s ideal for food, pharmaceutical, chemical industries, and all sanitary environments as it carries out a wide range of applications
04

AquaPruf 7600 Ultimate Series Sanitary Conveyors Positive End Drive

Solid urethane belting, includes Belt Scraper

  • Positive End Drive
  • Benefits of 7600 Ultimate AquaPruf Positive End Drive
  • Load: 20 lbs/square foot of belt (90 kg/m2)
  • Belt Widths: 6” (152 mm) to 36” (914 mm)
  • Lengths: 36” (914 mm) to 40’ (12.2 m)
  • Belt speed: 233 ft/min maximum (71 m/min)
05

Stainless Steel Support Stands

Caster options comes with bracing unless it’s the low height version

  • Aluminum Support Stands
  • Welded 7 gauge stainless steel construction
  • Open frame design for easy cleaning
  • Provides 4″ (100mm) of height adjustment
  • 250 (9.84”) to 425 (16.73”) Top of Belts Heights available
  • 335 (13”) to 697 (27”) widths depending on conveyor widths

04 Selection

Confirm the operating duty.

01

Product

Size, weight, orientation and contact surface determine the carrying format.

02

Environment

Cleaning method, moisture, temperature and material exposure determine frame and belt selection.

03

Movement

Rate, indexing, incline, accumulation and transfers determine the drive and control arrangement.

05 Related

Compare the parent family, applications and service support before fixing a configuration.

Sanitary conveyor familyReturn to the parent product familyAll productsCompare every conveyor platformApplicationsMatch equipment to the required movementParts & serviceSupport for installed equipment

Specify this product against your line.

Send the product, environment, rate and layout. Roarer will confirm the suitable model and configuration.

Discuss your application
