01 Model-level product

Sanitary

AquaGard GT Sanitary Chain Conveyor

An open stainless-steel chain conveyor for food handling, washdown and routes that include curves.

Configure with an engineerRequest a quote
  • Washdown
  • Flexible chain
  • Food handling

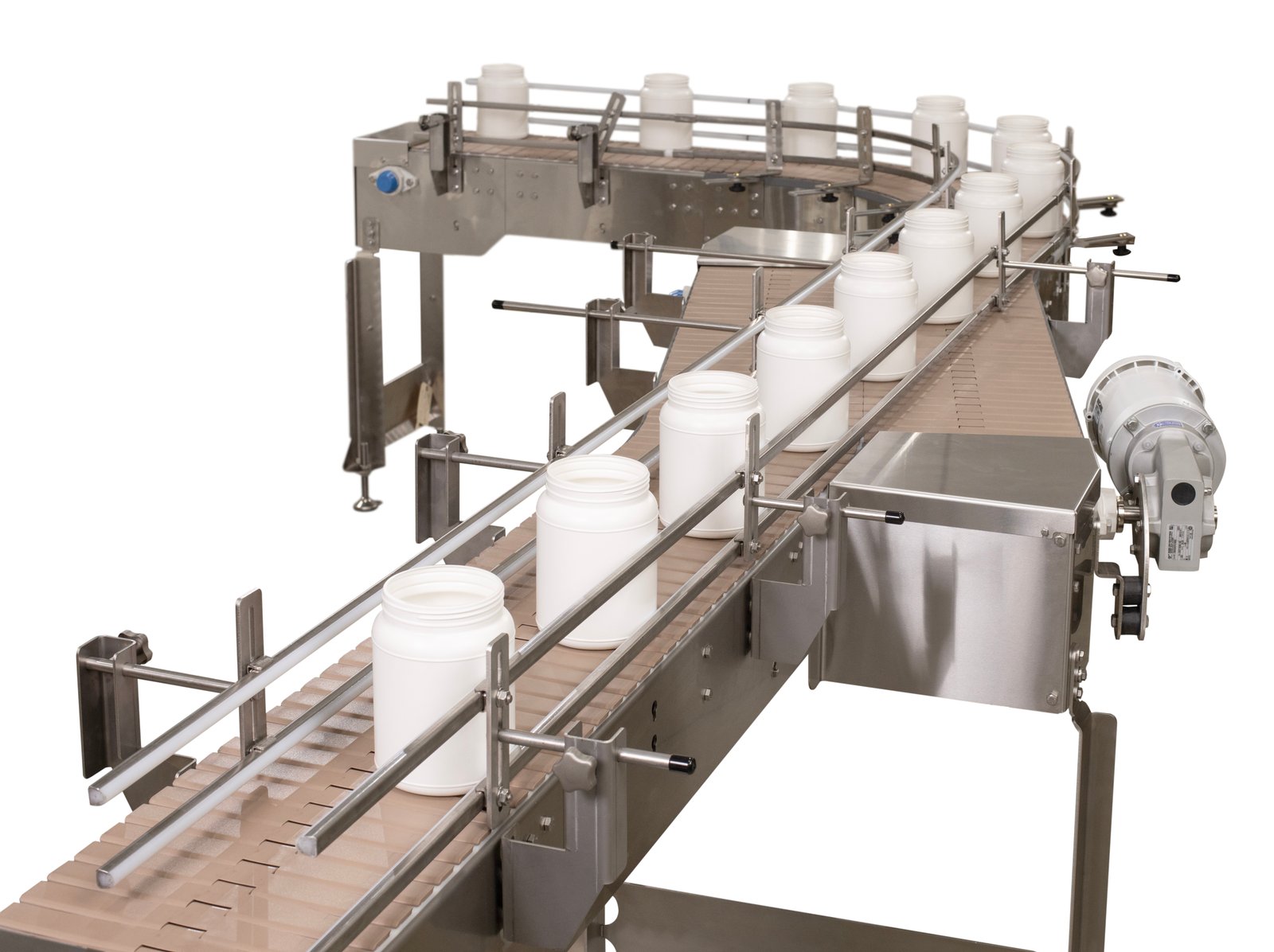

AquaGard GT stainless-steel conveyorSanitary
Page scope
Model and variants
Selection
Application-specific
Support
Roarer engineering

02 Overview

AquaGard GT Sanitary Chain Conveyor

An open stainless-steel chain conveyor for food handling, washdown and routes that include curves.

The published details below are grouped by model, drive, belt or accessory so a figure from one configuration is not presented as universal. Final dimensions and ratings are confirmed against the selected layout.

03 Available range

Models, configurations and components.

Published specifications are kept with the model, drive, belt or accessory they describe. Final ratings depend on the complete engineered configuration.

01

AquaGard GT Conveyors

Best for: food packaging, bottling, dry food processing, long lengths, accumulation and buffering

  • Smooth frame design for ease of cleaning
  • Capable of multiple curves as well as inclines and declines on a single conveyor
  • Innovative transfer options
  • Powered transfers, mini rollers, or dead plate
  • Standard tails side-to-side transfer
  • Flush side transfers
02

New AquaGard GT Stainless Steel Conveyor

Infeed & Outfeed Modules available in multiple lengths

  • Standard end transfers with optional mini rollers, dead plates, or powered transfers
  • Wide range of belt size options available on request standard low friction, stainless, friction insert, or ESD options available. Standard belt is low friction
  • Available chain widths: 83, 115, 191, & 305 mm (3.25, 4.5,7.5, & 12 inches)
  • Lengths up to 25,000 mm (82 ft) in 5 mm increments
  • Infeed & Outfeed lengths from 405-915 mm (16-36 in.)
  • Loads up to 700 lbs

04 Selection

Confirm the operating duty.

01

Product

Size, weight, orientation and contact surface determine the carrying format.

02

Environment

Cleaning method, moisture, temperature and material exposure determine frame and belt selection.

03

Movement

Rate, indexing, incline, accumulation and transfers determine the drive and control arrangement.

05 Related

Compare the parent family, applications and service support before fixing a configuration.

Sanitary conveyor familyReturn to the parent product familyAll productsCompare every conveyor platformApplicationsMatch equipment to the required movementParts & serviceSupport for installed equipment

Specify this product against your line.

Send the product, environment, rate and layout. Roarer will confirm the suitable model and configuration.

Discuss your application
