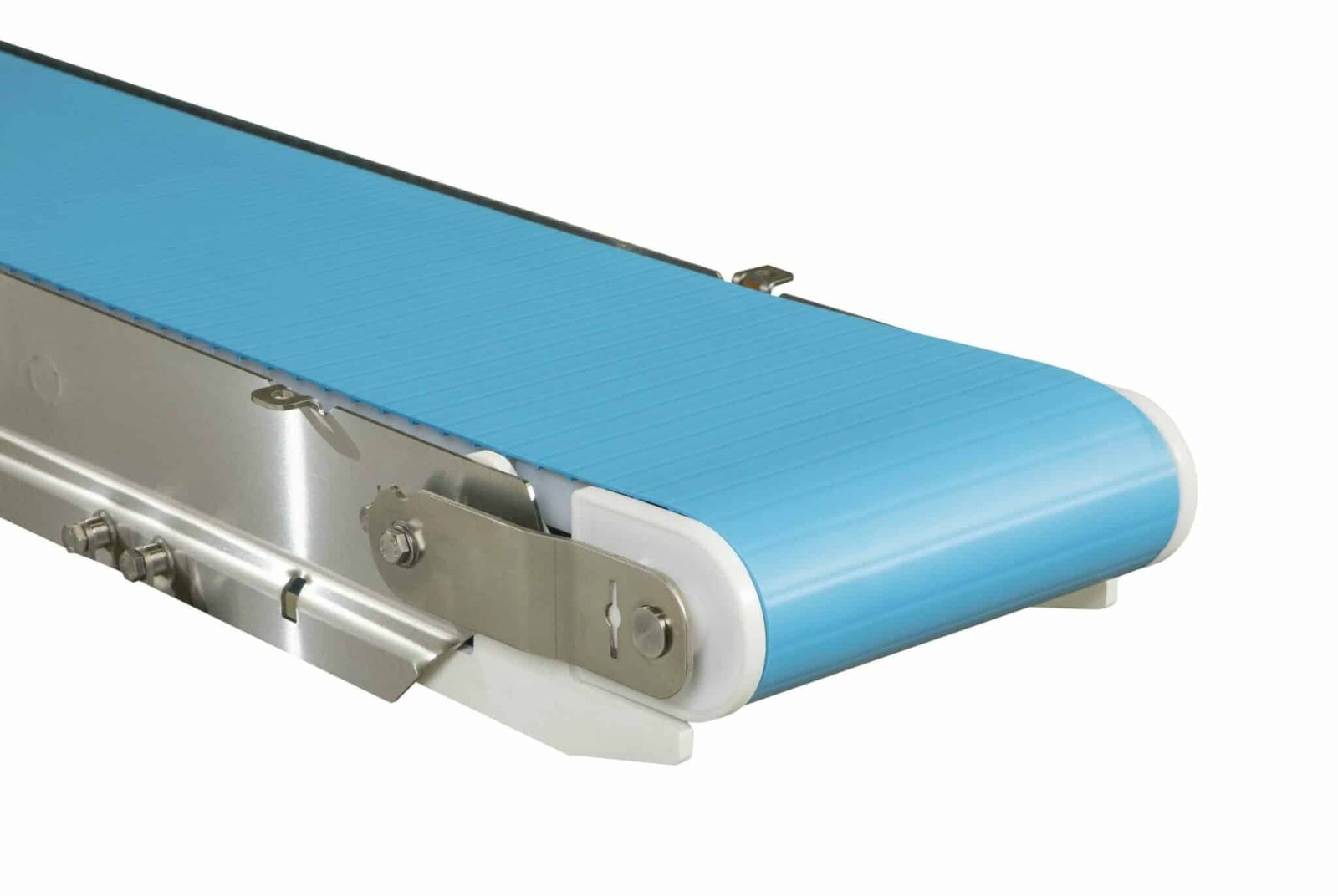

AquaPruf Washdown Conveyors

Welded stainless-steel conveyors designed for tool-less access and high-pressure sanitation.

The published details below are grouped by model, drive, belt or accessory so a figure from one configuration is not presented as universal. Final dimensions and ratings are confirmed against the selected layout.

03 Available range

Models, configurations and components.

Published specifications are kept with the model, drive, belt or accessory they describe. Final ratings depend on the complete engineered configuration.

01

AquaPruf Conveyors

Optional frame cut-outs and belt lifters provide easy access to inside of conveyor

  • Improved chain strength on curve conveyors provides capability for 3 curves on one gearmotor
  • AquaPruf offers a variety of belting and guiding options
  • Positive Drive conveyors are sprocket driven to avoid slipping in wet environments
  • Stainless steel frame construction with continuous TIG welding eliminates fasteners in the food zone
  • Nose bar transfer options provide safe transfer of small products
  • Z-frames are available in multiple configurations in both modular and belted conveyors
02

Flat Belt End Drive

Conveyor lengths: 915 mm (36 in) to 12190 mm (480 in)

  • Loads up to 227 kg (500 lbs) or 98 kg/sq m (20 lbs/sq ft)
  • Belt speeds up to 91 m/min (300 ft/min)
  • Belt widths: 152 mm (6 in) to 1219 mm (48 in)
  • One revolution of drive pulley moves the belt approximately 280 mm (11 in)
  • Continuous TIG Welded 304 Stainless Steel Frame
  • 400 Series Stainless Steel bearing with FDA H1 food grade grease
03

Flat Belt Center Drive

Conveyor lengths: 915 mm (36 in) to 12190 mm (480 in)

  • Loads up to 227 kg (500 lbs) or 98 kg/sq m (20 lbs/sq ft)*
  • Belt speeds up to 91 m/min (300 ft/min)
  • Belt widths: 152 mm (6 in) to 1219 mm (48 in)
  • One revolution of drive pulley moves the belt approximately 280 mm (11 in)
  • Continuous TIG Welded 304 Stainless Steel Frame
  • 400 Series Stainless Steel bearing with FDA H1 food grade grease
04

AquaPruf Conveyors - Cleated Belt End Drive

Conveyor lengths: 915 mm (36 in) to 6095 mm (240 in)

  • Cleated Belt End Drive
  • Loads up to 227 kg (500 lbs) or 98 kg/sq m (20 lbs/sq ft)
  • Belt speeds up to 91 m/min (300 ft/min)
  • Belt widths: 203 mm (8 in) to 610 mm (24 in)
  • Cleat heights from 11 mm (0.43 in) to 60 mm (2.63 in)
  • Continuous TIG Welded 304 Stainless Steel Frame
05

LPZ (Z-frame) Cleated Belt

Conveyor section lengths: 610 mm (24 in) to 6100 mm (240 in)

  • Loads up to 45 kg (100 lbs) or 98 kg/sq m (20 lbs/sq ft)
  • Belt speeds up to 91 m/min (300 ft/min)
  • Belt widths: 203 mm (8 in) to 610 mm (24 in)
  • Maximum total conveyor length of 12190 mm (480 in)
  • Angles from 30 degrees to 60 degrees in 5 degree increments
  • Cleat heights from 11 mm (0.43 in) to 60 mm (2.63 in)
06

Positive Drive

Conveyor lengths: 915 mm (36 in) to 12190 mm (480 in)

  • Loads up to 227 kg (500 lbs) or 98 kg/sq m (20 lbs/sq ft)*
  • Belt speeds up to 91 m/min (300 ft/min)
  • Belt widths: 203 mm (8 in) to 1219 mm (48 in)
  • Positive driven belt provides greater load capacity and less slip
  • Continuous TIG Welded 304 Stainless Steel Frame
  • 400 Series Stainless Steel bearing with FDA H1 food grade grease
07

Straight Modular Flat Belt

Conveyor lengths: 915 mm (36 in) to 25000 mm (984 in)

  • Loads up to 341 kg (750 lbs) or 98 kg/sq m (20 lbs/sq ft)
  • Belt speeds up to 78.6 m/min (260 ft/min)
  • Belt widths: 150 mm (5.9 in) to 1200 mm (47.3 in)
  • Continuous TIG Welded 304 Stainless Steel Frame
  • 400 Series Stainless Steel bearing with FDA H1 food grade grease
  • FDA approved belting and plastic components
08

Straight Modular Cleated Belt

Conveyor lengths: 915 mm (36 in) to 25000 mm (984 in)

  • Loads up to 341 kg (750 lbs) or 98 kg/sq m (20 lbs/sq ft)*
  • Belt speeds up to 78.6 m/min (260 ft/min)
  • Belt widths: 200 mm (7.9 in) to 600 mm (23.6 in)
  • Cleat heights from 25 mm (1 in) to 75 mm (3 in)
  • Continuous TIG Welded 304 Stainless Steel Frame
  • 400 Series Stainless Steel bearing with FDA H1 food grade grease
09

Curved Modular Flat Belt

Conveyor section lengths: 460 mm (18 in) to 15240 mm (600 in)

  • Loads up to 227 kg (500 lbs) or 98 kg/sq m (20 lbs/sq ft)*
  • Belt speeds up to 78.6 m/min (260 ft/min)
  • Belt widths: 152 mm (6 in) to 914 mm (36 in)
  • Curve angles of 15, 30, 45, 60, 75, 90, 135 and 180 degrees
  • Continuous TIG Welded 304 Stainless Steel Frame
  • Up to curves driven by one gearmotor
10

LPZ (Z-frame) Modular Cleated Belt

Conveyor section lengths: 610 mm (24 in) to 6100 mm (240 in)

  • Loads up to 45 kg (100 lbs) or 98 kg/sq m (20 lbs/sq ft)
  • Belt speeds up to 78.6 m/min (260 ft/min)
  • Belt widths: 200 mm (7.9 in) to 600 mm (23.6 in)
  • Maximum total conveyor length of 25000 mm (984 in)
  • Angles from 30 degrees to 60 degrees in 5 degree increments
  • Continuous TIG Welded 304 Stainless Steel Frame
11

AquaGard & AquaPruf Accessories

Tool-less hook design for fast removal and rapid cleaning

  • Widths: 152 mm (6 in) to 1524 mm (60 in) available in 50 mm (2 in) increments
  • Lengths: 610 mm (24 in) to 25375 mm (999 in) available in 25 mm (1 in) increments maximum section lengths of
  • 2997 mm (118 in)
  • Provides a 50 mm (2 in) window for clean-out access without removal
  • All pans equipped with a 25 mm (1 in) containment lip on all sides
  • Widths: 6” (152 mm) to 24” (610 mm) available in 2” increments
12

AquaPruf Drive Mount Packages

to determine your desired belt speed based on conveyor type and mount package. See Gearmotor column

  • Belt Speed Chart
  • Stainless Steel
  • Belt Speed Charts
13

AquaPruf Gearmotors

Gearmotor Charts

  • Variable Speed Controllers
  • Fixed Speed
  • Variable Speed
14

AquaGard & AquaPruf Belt Types

Available for incline applications. Inserts may be placed along entire length of the belt or spaced on 51 mm (2 in)

  • AquaPruf Modular Belt Types
  • 102 mm (4 in), 152 mm (6 in) or 305 mm (12 in) centers
  • Friction inserts are indented 51 mm (2 in) from each belt edge
  • Flat Top Belts
  • Flush Grid Belts
  • Provide an open surface for better drainage, cleaning or air flow/cooling
15

AquaPruf Profiles

Flat Belt Profiles

  • Cleated Belt Profiles
  • Positive Drive Flat Belt Profiles
  • Flat Modular Belt Profiles
  • Cleated Modular Belt Profiles
  • W = selected belt width
16

AquaGard & AquaPruf Support Stands

Welded open frame Stainless Steel construction with a Brushed #4 finish

  • Fixed angle connection matching conveyor layout from Ø to 60 degrees
  • For 152 mm (6 in) to 1219 mm (48 in) widths
  • ± 51 mm (2 in) of adjustment
  • Optional 3A approved threadless foot and casters
  • Welded Stainless Steel construction with Brushed #4 finish
  • Extend stand width 316 mm (12.43 in)
