03 Available range
Models, configurations and components.
Published specifications are kept with the model, drive, belt or accessory they describe. Final ratings depend on the complete engineered configuration.
01AquaGard 7350 Sanitary Conveyor
Features a rugged and durable improved frame design
- AquaGard 7350 Conveyors
- Industry’s safest and most robust curve modular chain
- Positive drive belt with drive sprockets prevents slipping in wet environments
- Tip-up tails allow for access inside conveyors for cleaning and maintenance
- Optional powered transfer allows for end transfer of product as small as 75 mm (3 in) long
- Available in straights, curves or Z-frame configurations
02AquaGard 7350 Flat Modular Belt End Drive
Specifications of AquaGard 7350 Flat Belt End Drive Conveyor
- Flat Belt End Drive
- Standard V-guided belt tracking
- Optional 32 mm (1.24 in) nose bar tail
- Loads up to 227 kg (500 lbs) or 98 kg/sq m (20 lbs/sq ft)*
- Belt speeds up to 91 m/min (300 ft/min)
- Belt widths: 152 mm (6 in) to 914 mm (36 in)
03AquaGard 7350 Flat Center Drive
Specifications of AquaGard 7350 Flat Belt Center Drive Conveyor
- Flat Belt Center Drive
- Standard V-guided belt tracking
- Optional 32 mm (1.24 in) nose bar tail
- Loads up to 227 kg (500 lbs) or 98 kg/sq m (20 lbs/sq ft)*
- Belt speeds up to 91 m/min (300 ft/min)
- Belt widths: 152 mm (6 in) to 914 mm (36 in)

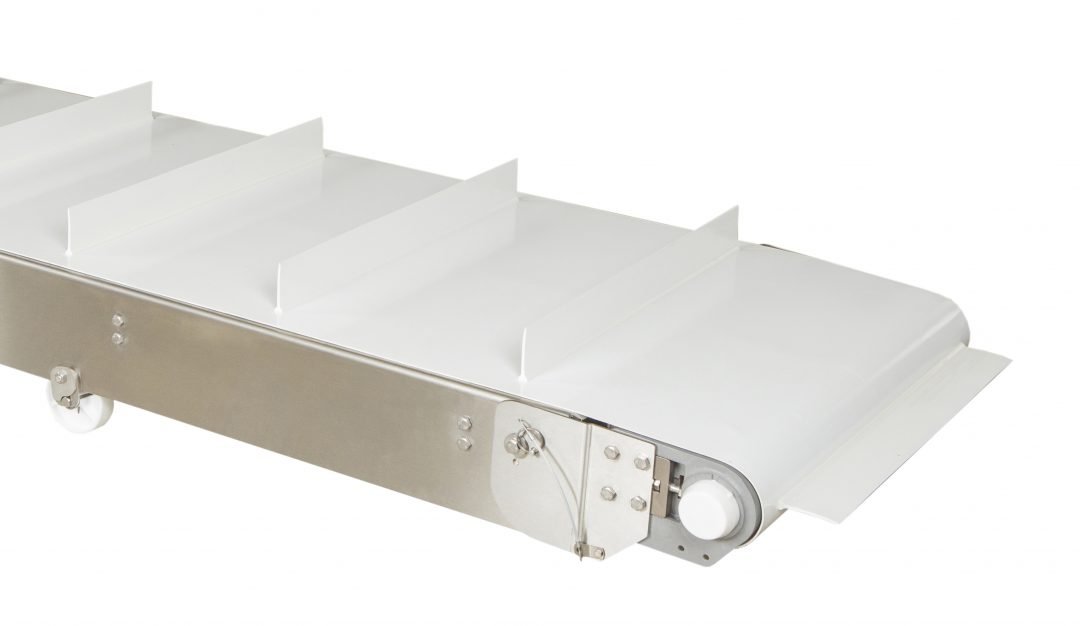

04AquaGard 7350 Cleated Belt End Drive
Specifications of AquaGard 7350 Cleated Belt End Drive Conveyor
- Cleated Belt
- Standard V-guided belt tracking
- Optional sidewall cleat belts for small parts
- Loads up to 227 kg (500 lbs) or 98 kg/sq m (20 lbs/sq ft)
- Belt speeds up to 91 m/min (300 ft/min)
- Belt widths: 152 mm (6 in) to 610 mm (24 in)
05AquaGard 7350 Positive Drive Belt
Features & Benefits of AquaGard 7350 Positive Drive Belt Conveyor
- Positive Drive Belt
- FDA approved materials in belting and plastic components
- UHMW Wear strip bed plate with abrasion resistant materials support belt and tool-less removal for ease of cleaning
- USDA accepted solid urethane belting won’t absorb water
- Minimal horizontal surfaces for ease of cleaning
- Positive driven belt with drive sprockets to avoid slipping in wet environments
06AquaGard 7350 Straight Modular Flat Belt
Features & Benefits of 7350 AquaGard Straight Modular Flat Belt Conveyor
- Straight Modular Flat Belt
- Tip-up Tails for access inside conveyor for cleaning and maintenance
- Safest curve chain in the industry with chain openings less than 4 mm, even in the curves
- Flat sides allow for flexibility when mounting accessories, interfacing with other equipment or transferring products
- Minimal horizontal surfaces for easy to clean sanitary surfaces
- Micropitch powered transfer for end transfer of product as small as 75 mm (3 in) long
07AquaGard 7350 Cleated Modular Belt
Features & Benefits of 7350 AquaGard Straight Modular Flat Belt Conveyor
- Straight Modular Cleated Belt
- Tip-up Tails for access inside conveyor for cleaning and maintenance
- Flat sides allow for flexibility when mounting accessories, interfacing with other equipment or transferring products
- Minimal horizontal surfaces for easy to clean sanitary surfaces
- Micropitch powered transfer for end transfer of product as small as 75 mm (3 in) long
- Robust open leg support stands with 7 gauge welded stainless steel
08AquaGard 7350 Curved Conveyors
Features & Benefits of 7350 AquaGard Curved Modular Flat Belt Conveyor
- Curved Modular Belt
- Innovative curve chain with center bearing to eliminate friction, allowing 4 curves on a single motor
- Safest curve chain in the industry with chain openings less than 4 mm, even in the curves
- Flat sides allow for flexibility when mounting accessories, interfacing with other equipment or transferring products
- Compact curve footprint with infeed and outfeed sections as short as 457 mm (18 in)
- Minimal horizontal surfaces for easy to clean sanitary surfaces
09AquaGard 7350 LPZ Flat Belt End Drive
Specifications of AquaGard 7350 LPZ (Z-Frame) Flat Belt Conveyor
- LPZ (Z-Frame) Flat Belt
- Loads up to 227 kg (500 lbs) or 98 kg/sq m (20 lbs/sq ft)
- Belt speeds up to 91 m/min (300 ft/min)
- Belt widths: 152 mm (6 in) to 610 mm (24 in)
- Conveyor section lengths: 610 mm (24 in) to 6100 mm (240 in)
- Maximum total conveyor length of 12190 mm (480 in)
10AquaGard 7350 LPZ Cleated Belt End Drive
Specifications of AquaGard 7350 LPZ (Z-Frame) Cleated Belt Conveyor
- LPZ (Z-Frame) Cleated Belt
- Optional sidewall cleated belts for small parts
- Configurations: Noseover, Horizontal to incline, Z-frame
- Loads up to 45 kg (100 lbs) or 98 kg/sq m (20 lbs/sq ft)*
- Belt speeds up to 91 m/min (300 ft/min)
- Belt widths: 152 mm (6 in) to 610 mm (24 in)
11AquaGard 7350 Z-Frame Flat Belt Conveyor
Features & Benefits of AquaGard 7350 Z-Frame Flat Belt Conveyor
- LPZ (Z-Frame) Modular Flat Belt
- Tip-up Tails for access inside conveyor for cleaning and maintenance
- Flat sides allow for flexibility when mounting accessories, interfacing with other equipment or transferring products
- Minimal horizontal surfaces for easy to clean sanitary surfaces
- Micropitch powered transfer for end transfer of product as small as 75 mm (3 in) long
- Robust open leg support stands with 7 gauge welded stainless steel
12AquaGard 7350 Z-Frame Cleated Belt Conveyor
Features & Benefits of AquaGard 7350 Z-Frame Flat Belt Conveyor
- LPZ (Z-Frame) Modular Cleated Belt
- Tip-up Tails for access inside conveyor for cleaning and maintenance
- Flat sides allow for flexibility when mounting accessories, interfacing with other equipment or transferring products
- Minimal horizontal surfaces for easy to clean sanitary surfaces
- Micropitch powered transfer for end transfer of product as small as 75 mm (3 in) long
- Robust open leg support stands with 7 gauge welded stainless steel
137350 AquaGard Drive Mount Packages
to determine your designed belt speed based on conveyor type and mount package. See Gearmotor column
- Belt Speed Chart
- Stainless Steel
- Belt Speed Charts
14AquaGard 7350 Gearmotors
7350 Gearmotors
- Variable Speed Controllers
- Fixed Speed
- Variable Speed
15Aquagard 7350 Profiles
Fully Adjustable Round with Tool-less Handles
- 7350 AquaGard Profiles
- Flat Belt Profiles
- Cleated Belt Profiles
- Modular Cleated Belt Profiles
- Profile 04
- 75 mm (3 in) Bolt-On High Side
16AquaGard 7350 Stands & Accessories
Welded open frame Stainless Steel construction with a 2B finish
- 7350 AquaGard Stands & Accessories
- Adjustable angle connecting plate from 0 to 60 degrees
- For 152 mm (6 in) to 914 mm (36 in) widths
- ± 51 mm (2 in) of adjustment
- For available heights see page 52 of manual
- Welded Stainless Steel construction with 2B
17AquaGard Belt Types
Available for incline applications. Inserts may be placed along entire length of the belt or spaced on 2”, 4”, 6” or 12” centers. Friction inserts are indented 2”(51 mm) from each belt edge
- Belting for: AquaGard 7350 & AquaPruf 7400
- Flat Top Belts
- Flush Grid Belts
- Provide an open surface for better drainage, cleaning or air flow/cooling
- Curve Belts
- Provide a tight radius, space saving corner. Side tabs ensure positive belt tracking with a flush top design. Reduces number of drives
18AquaGard Support Stands
Support Stands for: AquaGard 7350, AquaPruf 7400, 7600, 7600 Ultimate
- Stainless steel construction
- Provides 4″ (102mm) of height adjustment
- Foot self-aligns 10° for sloped floors
- Stand Widths: 7″ – 53.5″ (178mm – 1359mm)
- Stand Heights: 16″ – 70″ (406mm – 1778mm)
- Welded tubular stainless steel construction
