Twin-track pallet conveyors for assembly and automation: pallets carried, stopped, located and rotated at known positions rather than simply conveyed.

Configure with an engineer Request a quote
  • Assembly
  • Automation
  • Pallet routing
  • Lift and locate
  • Traffic control

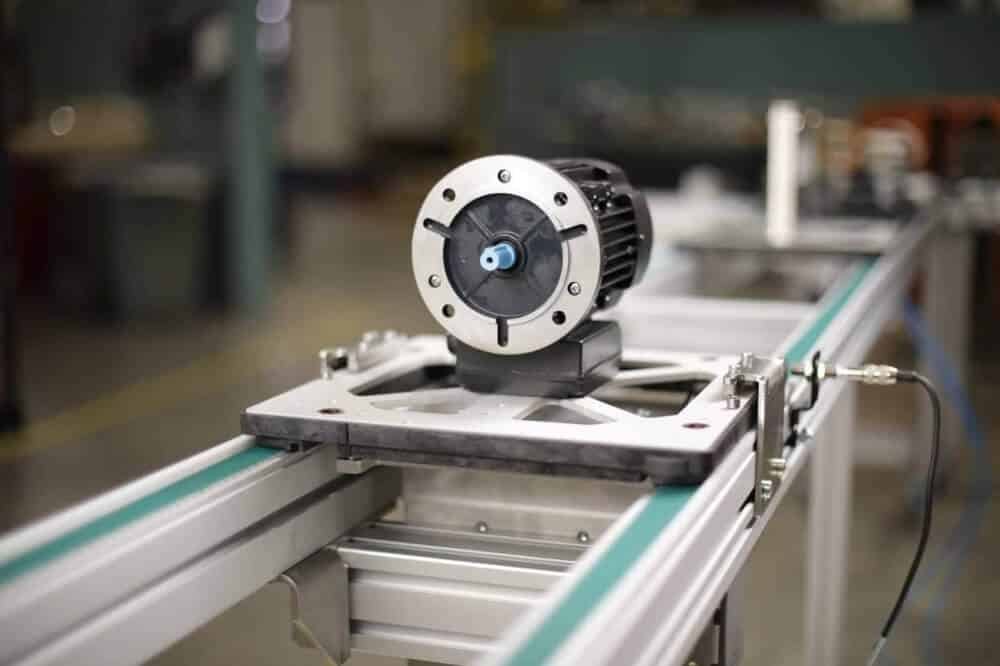

Twin-track pallet conveyor following a curved route Pallet systems · Twin track
Tracks
Dual T10 timing belt
Pallet widths
140–800 mm
Belt width
25 mm

02 Overview

Pallet Handling Systems.

A pallet system carries a fixture, not a product. That changes the requirement: the pallet has to stop in a repeatable place, be located accurately enough for a machine to work on it, and then release.

Dual timing-belt tracks with steel cords carry the pallet, with stop, lift-and-locate and rotate modules placed along the route.

03 Configurations

Choose by movement and application.

Specifications below are tied to each configuration and should not be applied to the whole platform.

01

DualMove

Twin-track pallet

Dual T10 timing belt conveyors with steel cords, in low friction, medium friction and static conductive options.

Belt width
25 mm
Mid drive
500–7,500 mm
End drive
300–3,800 mm
Drive pulley
19 tooth
02

Pallets

Standard and custom

Standard pallet widths with custom sizes available between 140 and 800 mm in 5 mm increments.

Standard
160–800 mm
Custom
140–800 mm
Increment
5 mm
Capacity
14–45 kg
03

Modules

Stop, locate, rotate

Pallet stops, lift-and-locate modules and rotate stations placed where the process needs the pallet held.

Sensors
12 mm barrel prox.
Range
4 mm recommended
Stops
Pneumatic
Rotate
Powered

04 Why this platform

What it is good at.

01

Repeatable position

Lift-and-locate modules put the pallet where a machine expects it, not approximately there.

02

Accumulating or not

Published capacities separate non-accumulating from accumulated load, because they are very different numbers.

03

Custom pallet sizes

Widths between 140 and 800 mm in 5 mm increments.

04

Standard sensing

Mounting for 12 mm barrel proximity sensors throughout.

05 Technical comparison

Published specifications

Published maximums depend on the selected model, drive, belt and layout. Confirm the final engineered configuration before purchase.

SpecificationDualMove
Belt width25 mm
Standard pallet widths160, 240, 320, 400, 480, 640, 800 mm
Custom pallet widths140–800 mm in 5 mm increments
Lengths, mid drive500–7,500 mm (20 in–24.6 ft)
Lengths, end drive300–3,800 mm (12 in–12.5 ft)
Load, non-accumulating569 kg (1,250 lb)
Load, accumulated284 kg (626 lb)
Pallet capacity14–45 kg (30–100 lb)
Drive pulley19 tooth, 60.6 mm pitch dia.
End roller50.8 mm (2.0 in)
Top of belt height305–1,829 mm (12–72 in)

The source also publishes a second load pair of 365 kg non-accumulating and 185 kg accumulated for a different configuration. Confirm which applies to your layout.
