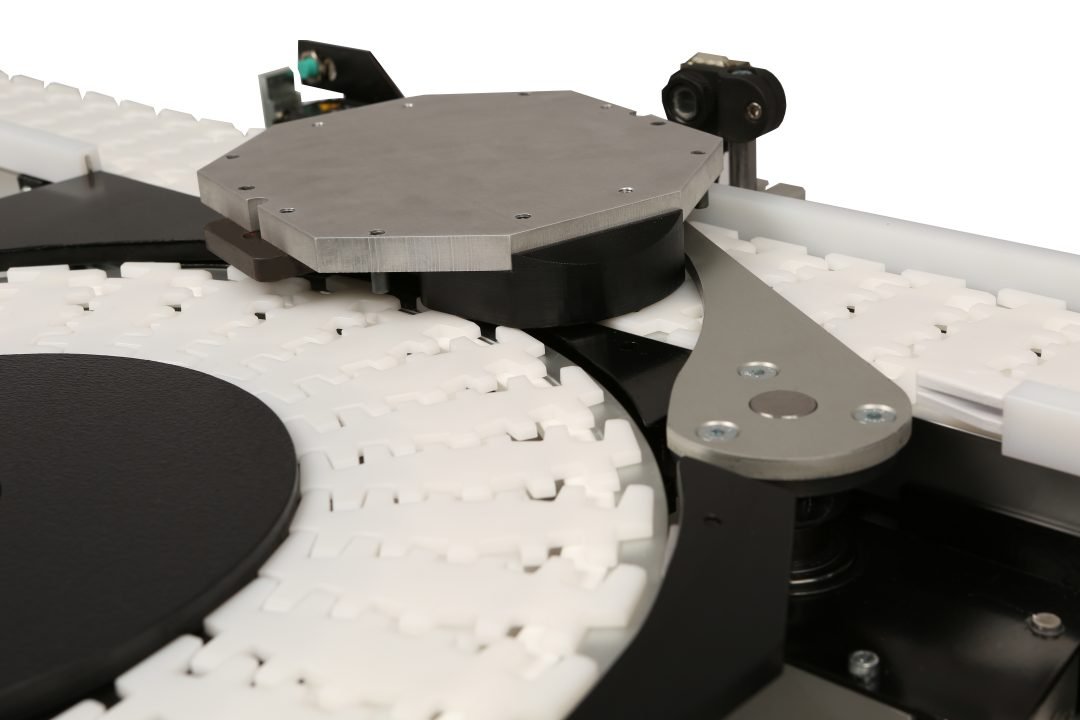

012200 Series Precision Move Pallet System
Innovative, Modular, Dual Belt Conveyor Pallet Systems for Assembly Automation
- 2200 Precision Move Pallet System
- Dual belt conveyors with common drive module on aluminum extruded frame with universal T-slot
- Pallets are sold as kits or completed assemblies. Static conductive pallet skirt pictured
- Optional pallet bumper available
- Simple and cost effective method of tracking pallets through turns with pin tracking system
- Cushioned Pallet Stop
0290 Degree Corner Pallet System
1 in. (25 mm) of pallet space at side of pins is required
- 90 Degree Corner
- Benefits of 2200 Precision Move Pallet System 90 Degree Corner
- Requires pin tracking capability in pallet
- Up to 30 lbs (14 kg) load capacity
- Inside guide is fixed mounted to transfer pallet around corner
- 24VDC mini-conveyors drive pallet around the corner
0390 Degree Corner and Merge Pallet System
1 in. (25 mm) of pallet space at side of pins is required
- 90 Degree Corner and Merge
- Benefits of 2200 Precision Move Pallet System 90 Degree Corner and Merge
- Requires pin tracking capability in pallet
- 35 lbs (16kg) load capacity (70 lbs (32 kg) available – consult factory)
- Straight guide with pneumatic cylinder is mounted across perpendicular conveyor to guide pallets straight through the merge area
- Includes sensor mount track on guide cylinder for C-Track 4 mm proximity sensors
042200 Series Precision Move Pallet System 180 Degree Corner
1 in. (25 mm) of pallet space at side of pins is required
- 180 Degree Corner
- Benefits of 2200 Precision Move Pallet System 180 Degree Corner
- Requires pin tracking capability in pallet
- Up to 30 lbs (14 kg) load capacity
- Inside guide is fixed mounted to transfer pallet around corner
- Two 24VDC mini-conveyors drive the pallet around the corner
05Precision Move Pallet System Heavy Load Corner
1 in. (25 mm) of pallet space at side of pins is required
- Heavy Load Corner
- Benefits of 2200 Precision Move Pallet System Heavy Load 90 & 180 Degree Corner
- Requires pin tracking capability in pallet
- 150 lbs (68 kg) load capacity
- Product accumulation in the corner is allowed (75 lbs (34 kg) maximum)
- Inside guide is fixed mounted to transfer pallet around corner
06Lift and Locate Pallet System
Provides 200 lbs of lift capability at 90 psi
- Benefits of 2200 Precision Move Pallet System Lift and Locate Module
- Accuracy of ±0.002″
- Lift height is adjustable. Maximum height is 2″ from top of belt to bottom of pallet
- Includes lift, pallet stop, mounting hardware and fittings for 1/4″ push in air line
- Includes 4 mm sensor track on lift cylinder for C-Track proximity sensors
- Optional sensor mount for pallet. Sensor mounts are for standard 12 mm diameter proximity switch
07Lift and Rotate Pallet System
Pneumatic rotation with adjustable positioning
- Benefits of 2200 Precision Move Pallet System Lift and Rotate Module
- Rotation angle: 90 to 180 degrees
- 200 lbs load capacity
- Includes mechanism, pallet stop, mounting hardware and fittings for 1/4″ push in air line
- Includes sensor mount track for lift cylinder and rotation cylinder to mount 4 mm C-Track proximity sensors
- Optional sensor mount for pallet. Sensor mounts are for standard 12 mm diameter proximity switch
08Lift and Transfer Pallet System
Up position transfers pallet on/off the transverse conveyor
- Lift and Transfer
- Benefits of 2200 Precision Move Pallet System Lift and Transfer Module
- 3 position Lift and Transfer
- Middle position stops pallet on the main conveyor
- Down position lowers the transfer and pallet stop allowing the pallet to pass over the lift and transfer
- Dual strand timing belt conveyors mounted to a pneumatic lift
09Low Profile Lift and Locate Pallet System
Provides 200 lbs of lift capability at 90 psi
- Benefits of 2200 Precision Move Pallet System Low Profile Lift and Locate Module
- Accuracy of ±0.015″
- Requires cushioned or non-cushioned pallet stop
- Optional sensor mount for pallet detection, sensor mounts are for standard 12 mm diameter proximity switch
- Lift cylinder includes magnetic piston and 4 mm sensor track for C-Track proximity sensors. Sensors not included
- 180 Degree Corner
