Belted
Standard configuration
Steel-framed belted conveyor specified by width, length and the package it carries.
- Widths
- 254–1,219 mm
- Lengths
- 960–12,000 mm
- Load
- Up to 181 kg
- Speed
- Up to 183 m/min
01 Heavy duty steel platform
DCMove

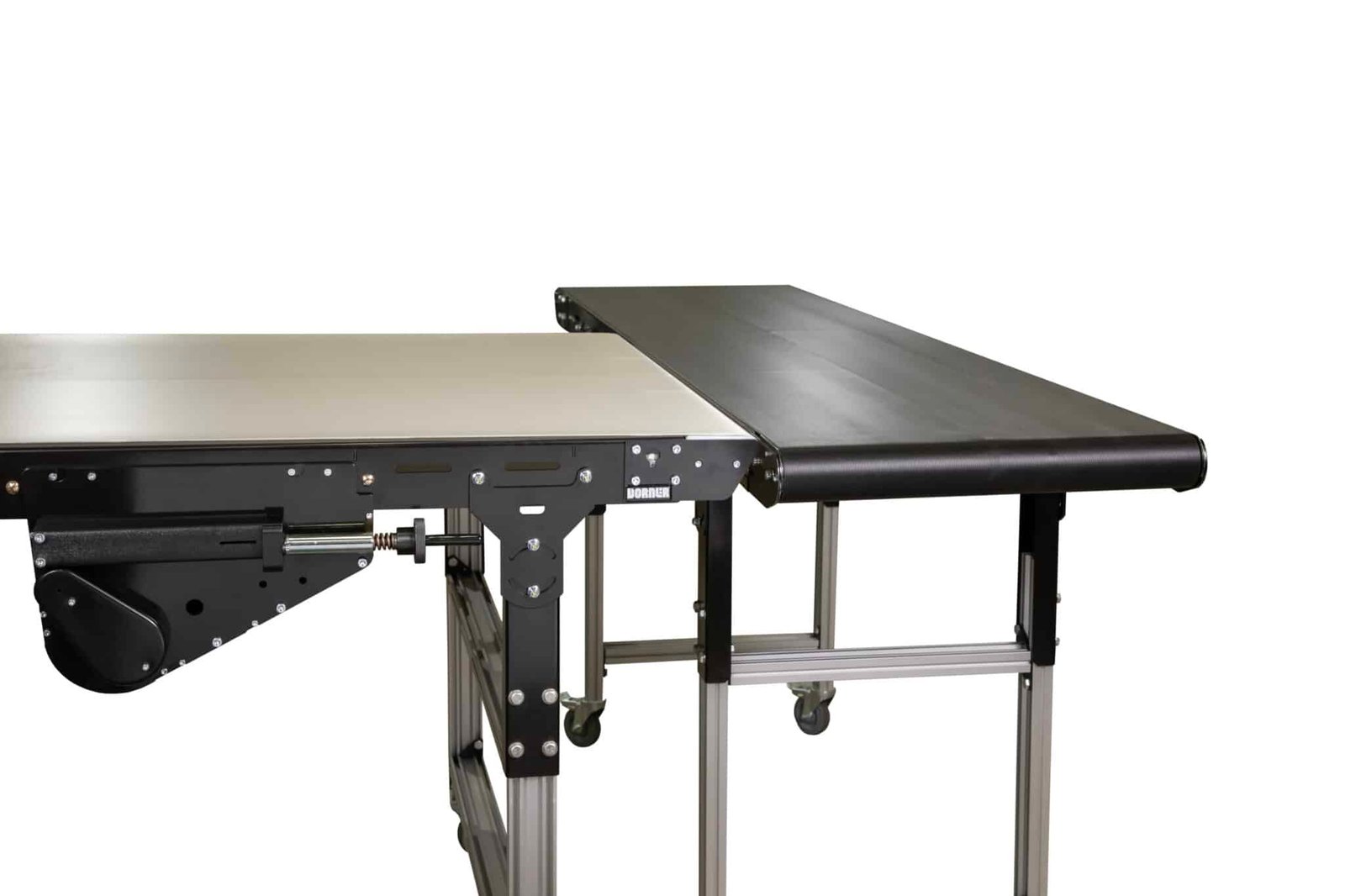

DCMove Heavy Duty Steel
A steel-frame belt platform for distribution and material handling duty, with 76 mm rollers, widths to 1,219 mm and a nose bar option for smaller packages.
DCMove · Belted
- Format
- Belted
- Frame
- Steel
- Rollers
- 76 mm diameter
02 Overview
DCMove Heavy Duty Steel.
DCMove is the steel-framed option, specified where the duty or the environment makes an aluminium frame the wrong choice. It is built for distribution and material-handling work rather than precision part movement.
A 32 mm nose bar option replaces the 76 mm roller where smaller packages would otherwise tip into the transfer gap.
03 Configurations
Choose by movement and application.
Specifications below are tied to each configuration and should not be applied to the whole platform.
Nose bar
Small package transfer
A 32 mm nose bar in place of the 76 mm roller, so smaller packages cross the transfer rather than dropping into it.
- Roller
- 76 mm (3 in)
- Nose bar
- 32 mm (1.25 in)
- Use
- Small packages
- Position
- Transfer end
Stands
Height adjustment
Support stands with height adjustment, movable along the conveyor in 150 mm increments depending on configuration.
- Adjustment
- 100 mm (4 in)
- Low stands
- 50 mm (2 in)
- Below
- 600 mm TOB
- Spacing
- 150 mm steps
04 Why this platform
What it is good at.
Steel frame
A steel frame for duty and environments where aluminium extrusion is not the right answer.
Wide belts
Widths from 254 mm to 1,219 mm (10–48 in).
Handles small packages
The 32 mm nose bar option keeps small packages moving across the transfer.
Adjustable supports
100 mm height adjustment, with a 50 mm option for top-of-belt heights below 600 mm.
05 Technical comparison
Published specifications
Published maximums depend on the selected model, drive, belt and layout. Confirm the final engineered configuration before purchase.
| Specification | DCMove Belted |
|---|---|
| Belt widths | 254–1,219 mm (10–48 in) |
| Lengths | 960–12,000 mm (38 in–40 ft) |
| Maximum load | 181 kg (400 lb) |
| Maximum speed | 183 m/min (600 ft/min) |
| Roller diameter | 76 mm (3 in) |
| Nose bar option | 32 mm (1.25 in) |
| Stand adjustment | 100 mm (4 in) |
| Low stand adjustment | 50 mm (2 in), below 600 mm TOB |
