Belted
Standard configuration
Fabric belt on an aluminium frame, specified by width and length against the product and the line it feeds.
- Widths
- 203–914 mm
- Lengths
- 508–7,315 mm
- Load
- Up to 68 kg
- Speed
- Up to 122 m/min
01 Medium duty conveyor platform
Series 2700

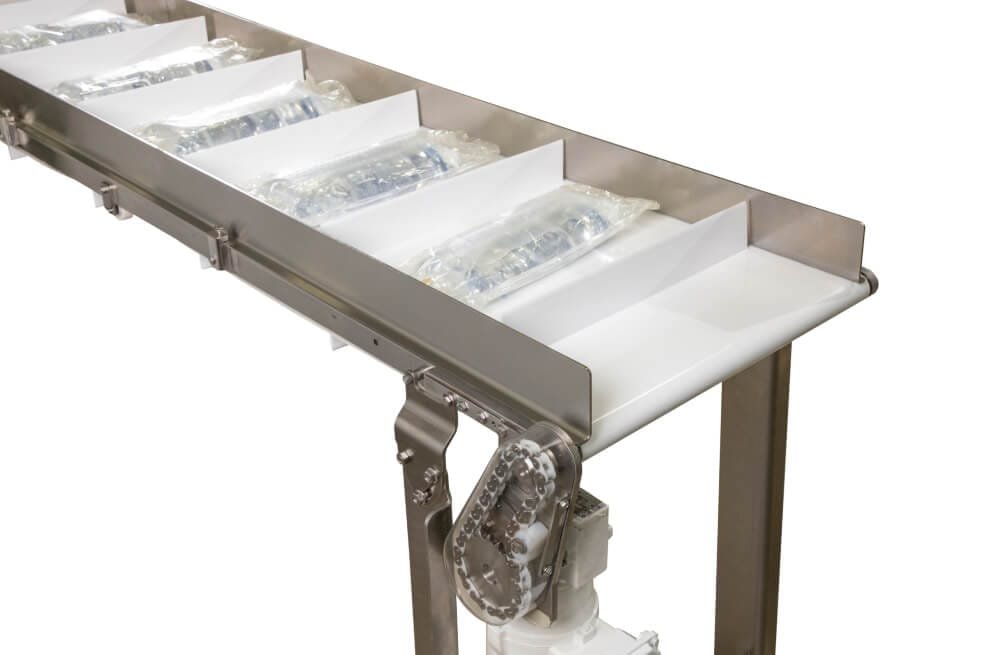

2700 Medium Duty Conveyors
A medium-duty belt platform that takes more load and more width than a low-profile frame without moving up to heavy-duty steel. Widths run to 914 mm and loads to 68 kg.
2700 Series · Belted
- Format
- Fabric belt
- Frame
- Aluminium
- Drive
- End and internal motor
02 Overview
2700 Medium Duty Conveyors.
The 2700 sits between the low-profile and heavy-duty platforms. It carries a higher weight rating and a wider belt than a low-profile frame, which is what most material-handling and packaging duty actually needs.
Width increases from 24 in to 36 in are available in 2 in increments, so the belt can be matched to the product rather than rounded up to the next frame size.
03 Configurations
Choose by movement and application.
Specifications below are tied to each configuration and should not be applied to the whole platform.
iDrive
Internal motor
The drive motor sits inside the conveyor frame, which removes the external gearmotor and the space it needs beside the belt.
- Drive
- Internal
- Benefit
- No external motor
- Use
- Tight installations
- Frame
- Aluminium
Pulleys
Drive geometry
60 mm diameter drive and idler pulleys turn approximately 189 mm of belt per revolution, with a 15 mm integral drive shaft.
- Pulley dia.
- 60 mm (2.4 in)
- Belt per rev.
- ≈189 mm
- Drive shaft
- 15 mm
- Aux. shaft
- Location options
04 Why this platform
What it is good at.
Higher weight rating
Loads up to 68 kg (150 lb), above what a low-profile platform carries.
Wider belts
Widths from 203 mm to 914 mm (8–36 in), with 24 to 36 in available in 2 in steps.
Internal drive option
The iDrive configuration puts the motor inside the frame, saving the space an external gearmotor needs.
Known belt travel
60 mm pulleys move about 189 mm of belt per revolution, which matters when indexing to a count.
05 Technical comparison
Published specifications
Published maximums depend on the selected model, drive, belt and layout. Confirm the final engineered configuration before purchase.
| Specification | 2700 Belted |
|---|---|
| Belt widths | 203–914 mm (8–36 in) |
| Width increments | 2 in from 24 in to 36 in |
| Lengths | 508–7,315 mm (20 in–24 ft) |
| Maximum load | 68 kg (150 lb) |
| Maximum speed | 122 m/min (400 ft/min) |
| Drive / idler pulley | 60 mm (2.4 in) diameter |
| Belt per revolution | ≈189 mm (7.4 in) |
| Drive shaft | 15 mm integral |
06 Elsewhere
Where this platform is used.
Applications built on this and the other conveyor platforms.
Specify this platform against your line.
Give us the product, the environment, the rate and the layout, and Roarer can confirm whether this platform fits and in which configuration.
Discuss your application
