End drive
Side and bottom mounted
Drive at the end of the conveyor, mounted at the side or underneath, for the shortest possible installed length.
- Lengths
- 268–1,829 mm
- Speed
- Up to 21 m/min
- Drive pulley
- 25 mm dia.
- Idler
- 16 mm dia.
01 Miniature conveyor platform
Series 1100

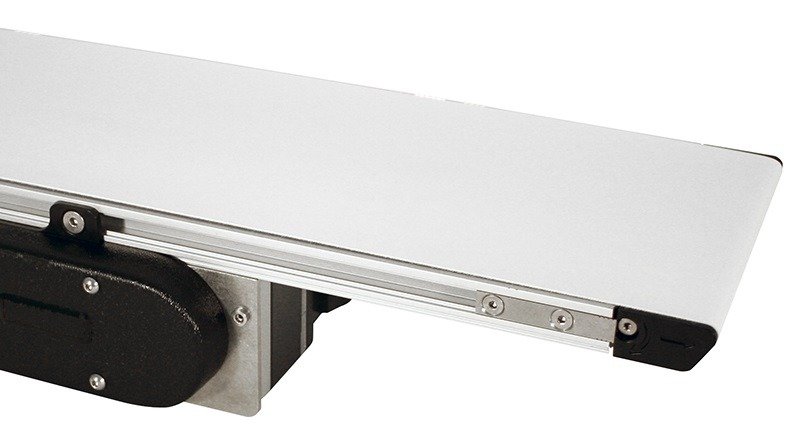

1100 Miniature Conveyors
A miniature belt platform built to fit inside machinery rather than beside it. A flush frame lets product transfer off the side, and the whole conveyor is sized in 3 mm steps so it fits the gap you actually have.
1100 Series · End drive
- Formats
- Fabric belt
- Frame
- Low-profile aluminium
- Drives
- End and mid drive
02 Overview
1100 Miniature Conveyors.
The 1100 is the platform you reach for when there is no room for a conveyor. It fits inside machinery and equipment, and its flush frame allows product to transfer off the side rather than only off the end.
Lengths are specified in 3 mm (1/8 in) increments, so the conveyor is built to the gap rather than the gap being built around a standard length.
03 Configurations
Choose by movement and application.
Specifications below are tied to each configuration and should not be applied to the whole platform.
Mid drive
Centre driven
A centre drive pulley lets the conveyor run longer without moving the drive to the end, where space may not exist.
- Drive pulley
- 32 mm dia.
- Idler
- 16 mm dia.
- Nose bar
- 8 mm option
- Belt wrap
- 180°
Nose bar
Small part transfer
An 8 mm nose bar can be fitted at one or both ends, so small parts transfer across a gap instead of tipping into it.
- Diameter
- 8 mm
- Position
- One or both ends
- Use
- Small part transfer
- Belts
- 3 FDA options
04 Why this platform
What it is good at.
Fits inside equipment
The platform is designed to sit within machinery rather than alongside it, which is usually where the space problem is.
Flush frame
The flush frame allows side transfers, so product can leave the belt anywhere along its length.
Built to the gap
Lengths in 3 mm (1/8 in) increments from 268 mm to 1,829 mm.
Spring tensioned
The belt is spring tensioned around the drive pulley for 180° of wrap, so tracking holds without manual adjustment.
05 Technical comparison
Published specifications
Published maximums depend on the selected model, drive, belt and layout. Confirm the final engineered configuration before purchase.
| Specification | End drive | Mid drive |
|---|---|---|
| Belt widths | 44 / 95 / 152 / 203 / 254 mm | 44 / 95 / 152 / 203 / 254 mm |
| Lengths | 268–1,829 mm | 270–1,829 mm |
| Increment | 3 mm (1/8 in) | 3 mm (1/8 in) |
| Maximum load | 6.8 kg (15 lb) | 6.8 kg (15 lb) |
| Maximum speed | 21 m/min (70 ft/min) | 21 m/min (70 ft/min) |
| Drive pulley | 25 mm (1 in) | 32 mm (1.25 in) |
| Idler pulley | 16 mm (0.625 in) | 16 mm (0.625 in) |
| Nose bar option | 8 mm (0.31 in) | 8 mm (0.31 in) |
Belt speed is published as 70 ft/min (21 m/min). The source platform page also carried "80 fpm (21 m/min)", which is internally inconsistent; the figure consistent with the metric value and with the drive sub-pages is used here.
06 Elsewhere
Where this platform is used.
Applications built on this and the other conveyor platforms.
Specify this platform against your line.
Give us the product, the environment, the rate and the layout, and Roarer can confirm whether this platform fits and in which configuration.
