3200 Series

3200 Precision Move Conveyors

Heavy-duty positive-drive conveyors for timed movement, indexing and fixtured pallet handling.

Configure with an engineerRequest a quote
  • Precision indexing
  • Heavy duty
  • Fixtured pallets

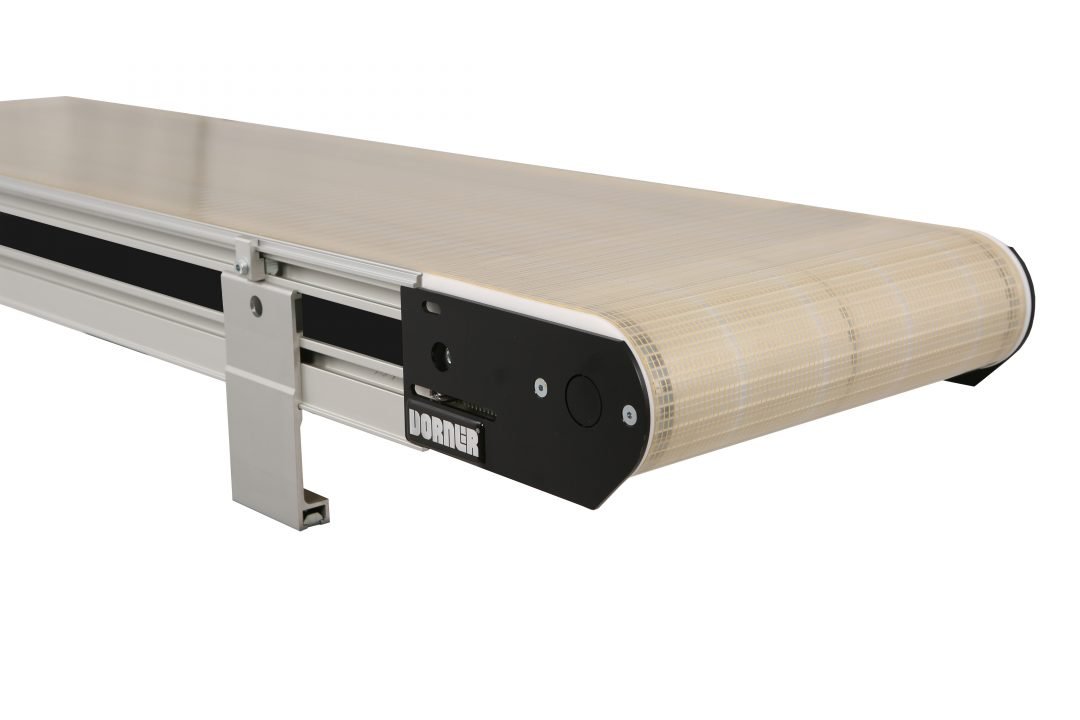

3200 Precision Move conveyor3200 Series
Page scope
Model and variants
Selection
Application-specific
Support
Roarer engineering

02 Overview

3200 Precision Move Conveyors

Heavy-duty positive-drive conveyors for timed movement, indexing and fixtured pallet handling.

The published details below are grouped by model, drive, belt or accessory so a figure from one configuration is not presented as universal. Final dimensions and ratings are confirmed against the selected layout.

03 Available range

Models, configurations and components.

Published specifications are kept with the model, drive, belt or accessory they describe. Final ratings depend on the complete engineered configuration.

01

3200 Precision Move Conveyors

Ideal for Precision Part Movement, Small Part Handling and Positioning, Automated and Manual Assembly, Machine Integration, Robotic Pick-N-Place and Precision Indexing

  • Capable of up to 30 indexes per minute
  • Three pallet fixture mounting options
  • Control switches are integrated into the conveyor. Indexing, variable speed and reversing available
  • Benefits of 3200 Series Precision Move Conveyors
  • Loads up to 750 lbs (340 kg)
  • Belt speeds up to 517 ft/min (158 m/min)
02

3200 Series Precision Move End Drive Conveyors

Conveyor lengths: 2′ (610 mm) to 50′ (15,240 mm)

  • End Drive
  • Flat Belt
  • Cleated Belt
  • Fixtured Belt
  • Benefits of 3200 Series Precision Move End Drive Conveyors
  • Flat, Fixtures and Cleated belt options
03

3200 Series Precision Cleated Belt Conveyors

Ideal for Precision Part Movement, Small Part Handling and Positioning, Automated and Manual Assembly, Machine Integration, Robotic Pick-N-Place and Precision Indexing

  • Cleated Belt
  • Three pallet fixture mounting options
  • Benefits of 3200 Series Precision Move Cleated Belt Conveyors
  • Loads up to 750 lbs* (340 kg)
  • Belt speeds up to 517 ft/min (158 m/min)
  • Belt widths: 4″ (95 mm) to 18″ (457 mm) in with 2″ increments
04

3200 Series Precision Move Fixtured Pallet Mount

3 Options: M5 inserts, pallet mounting bars, or direct pallet mounting

  • Fixtured Pallet Mount
  • Benefits of 3200 Series Precision Move Fixtured Pallet Mount Conveyors
  • Provides an accurate mounting bar for pallet attachment
  • M6 taps located along the bar length
  • Provided assembled to conveyor belt
  • Minimum spacing = 2.0″ (51 mm)
05

3200 Series Precision Move Belting

Belt Type

  • Flat Belt
  • Cleated Belt
  • Fixtured Belt
  • H (0.5″)
  • 0.160 (4.1)
  • 160˚F (71˚C)

04 Selection

Confirm the operating duty.

01

Product

Size, weight, orientation and contact surface determine the carrying format.

02

Environment

Cleaning method, moisture, temperature and material exposure determine frame and belt selection.

03

Movement

Rate, indexing, incline, accumulation and transfers determine the drive and control arrangement.
