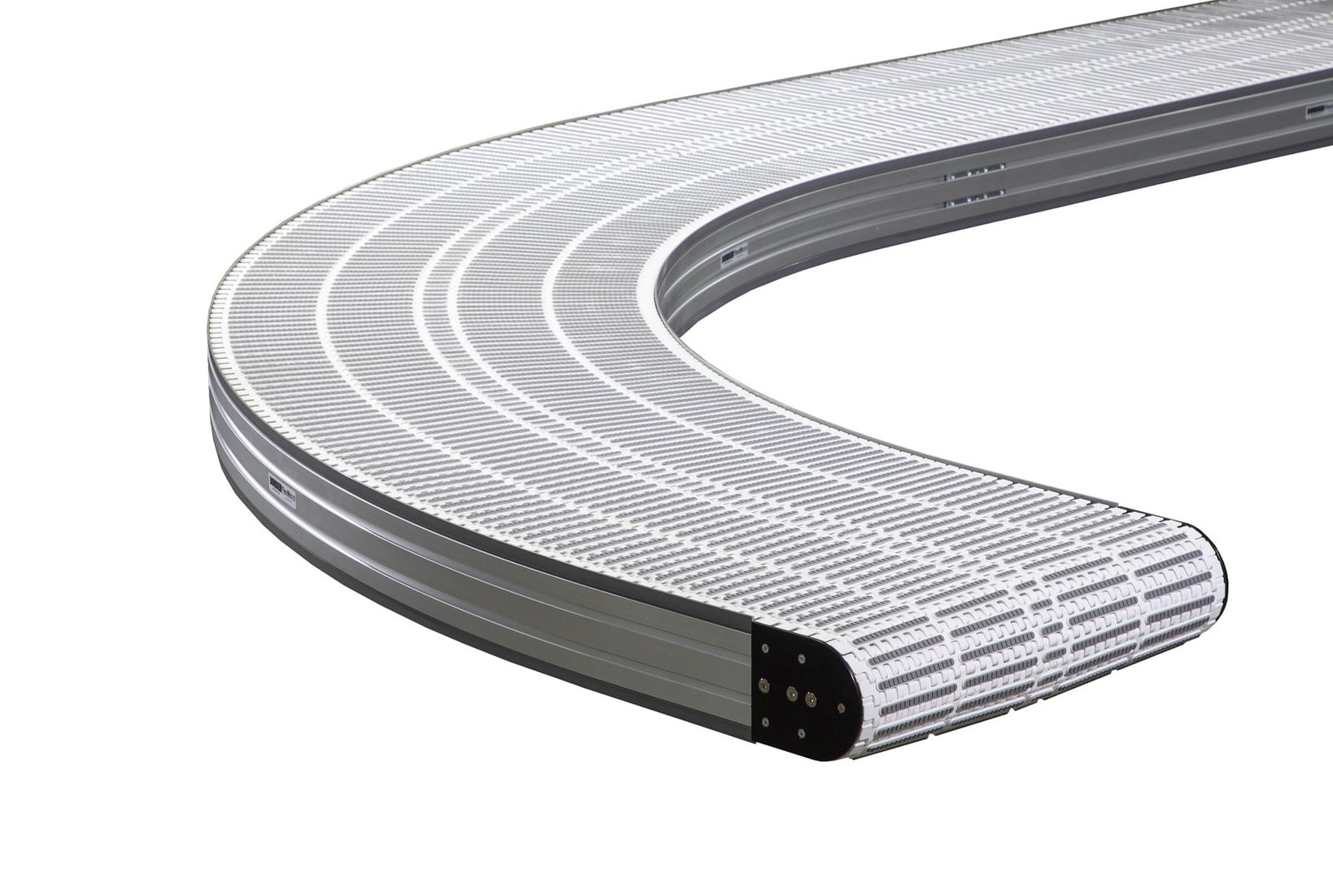

Flexible-chain conveyor function moduleFlexible chain
Page scope
Model and variants
Selection
Application-specific
Support
Roarer engineering

02 Overview

FlexMove Function Modules

Clamping, cleaning, stop, divert, merge and transfer modules integrated into flexible-chain routes.

The published details below are grouped by model, drive, belt or accessory so a figure from one configuration is not presented as universal. Final dimensions and ratings are confirmed against the selected layout.

03 Available range

Models, configurations and components.

Published specifications are kept with the model, drive, belt or accessory they describe. Final ratings depend on the complete engineered configuration.

01

Clamping Module for FlexMove Aluminum Conveyors

Pneumatic clamping actuator, mounted on both sides of the conveyor, holds back and paces product

  • Fixed Width Clamping Module
  • Adjustable Width Clamping Module
  • Available on FlexMove Aluminium Conveyors: FS (65 mm), FM (85 mm), FC (105 mm), FL (150 mm), FU (180 mm) and FV (260 mm)
  • Max. single product weight: 2.3 Kg (5 lbs.)
  • Max. product accumulation weight: 13.6 Kg (30 lbs.)
  • Specify product width at time of ordering
02

Dry Cleaning Module for FlexMove Aluminum Conveyors

Designed to run continuously in production line

  • Dry Cleaning Module
  • Provides continuous cleaning of conveyor chain for dry applications
  • Benefits of the Dry Cleaning Module
  • Dry Cleaning Module provides continuous cleaning of conveyor chain for dry applications with powder, dust or other dry contaminates
  • Series Driven Rotary Brush scrubs chain surface, compressed air blows off particles, and vacuum extracts dust
  • Allows for longer, cleaner production runs with less overall maintenance
03

Wet Cleaning Modules for FlexMove Stainless Conveyors

Designed to run continuously in production line

  • Wet Cleaning Module
  • Water jets spray outside and inside of the conveyor chain
  • Benefits of the Wet Cleaning Module
  • Wet Cleaning Module provides continuous cleaning of conveyor chain for applications with liquid or product overfill or package breakage
  • Series Driven Brush scrubs top and bottom surface of chain
  • Air knifes blow off water from chain
04

FlexMove Popup Stop Module

The wide pop-up stopper unit are developed to stop product

  • movement which is wider than conveyor width
  • Supported accumulation load: Up to 60kg
  • Maximum conveyor speed: up to 40m/min
  • Available for conveyor width: 45mm, 65mm
  • 85mm,105mm,150mm,180mm & 260mm
  • Best work with FlexMove plain chain
05

Puck Stop Module for FlexMove Conveyors

Compatible with round or rectangular bottles, containers or pucks

  • Available on FlexMove Aluminum Conveyors: FS (65 mm), FM (85 mm), FC (105 mm), FL (150 mm), FU (180 mm), and FV (260 mm)
  • Max. single product weight: 2.3 kg (5 lbs)
  • Max. product accumulation weight: 13.6 kg (30 lbs)
  • Max. conveyor speed: 50 m/min (164 ft/min)
  • Produces gap of approximately one product length
06

Puck/Package Divert Module for FlexMove Conveyors

Product guiding is available as needed for the application

  • Available on FlexMove Aluminum Conveyors: FS (65 mm), FM (85 mm), FC (105 mm), FL (150 mm), FU (180 mm), and FV (260 mm)
  • Min. single product weight: 0.2 kg (0.45 lbs)
  • Max. single product weight: 5 kg (11 lbs)
  • Max. product height: 150 mm (5.9 in)
  • Max. product width: chain width (example: FM 85 mm)
07

Side Acting Merge Module

Two-to-one lane merging without the need for control logic

  • Activate arm is adjustable in both height and length
  • Available on FlexMove Aluminium Conveyors: FS (65 mm), FM (85 mm), FC (105 mm), FL (150 mm), FU (180 mm) and FV (260 mm)
  • Side Acting Merger is not suitable for high speed applications
  • Min. Single Product Weight: 0.5 kg
  • Max. Single Product Weight: 15 kg
  • Max. Product Accumulation Weight: Up to 45 kg
08

S & X In-Line Transfer Modules for FlexMove Aluminum Conveyors

S In-Line Modules provide a standard, compact way to

  • S & X In-Line Transfer Module
  • S In-Line Transfer Module
  • side transfer product from conveyor to conveyor
  • Straight guiding is placed across the transfer module
  • transfer even for small products
  • S In-Line transfers are compact in the width dimension

04 Selection

Confirm the operating duty.

01

Product

Size, weight, orientation and contact surface determine the carrying format.

02

Environment

Cleaning method, moisture, temperature and material exposure determine frame and belt selection.

03

Movement

Rate, indexing, incline, accumulation and transfers determine the drive and control arrangement.
