Compact straight, horizontal-to-incline, nose-over and Z-frame conveyors with extensive belt and guiding options.
- Widths
- 44–914 mm
- Lengths
- 457–7,315 mm
- Load
- Up to 54 kg
- Speed
- Up to 122 m/min
01 Low-profile conveyor platform
Series 2200

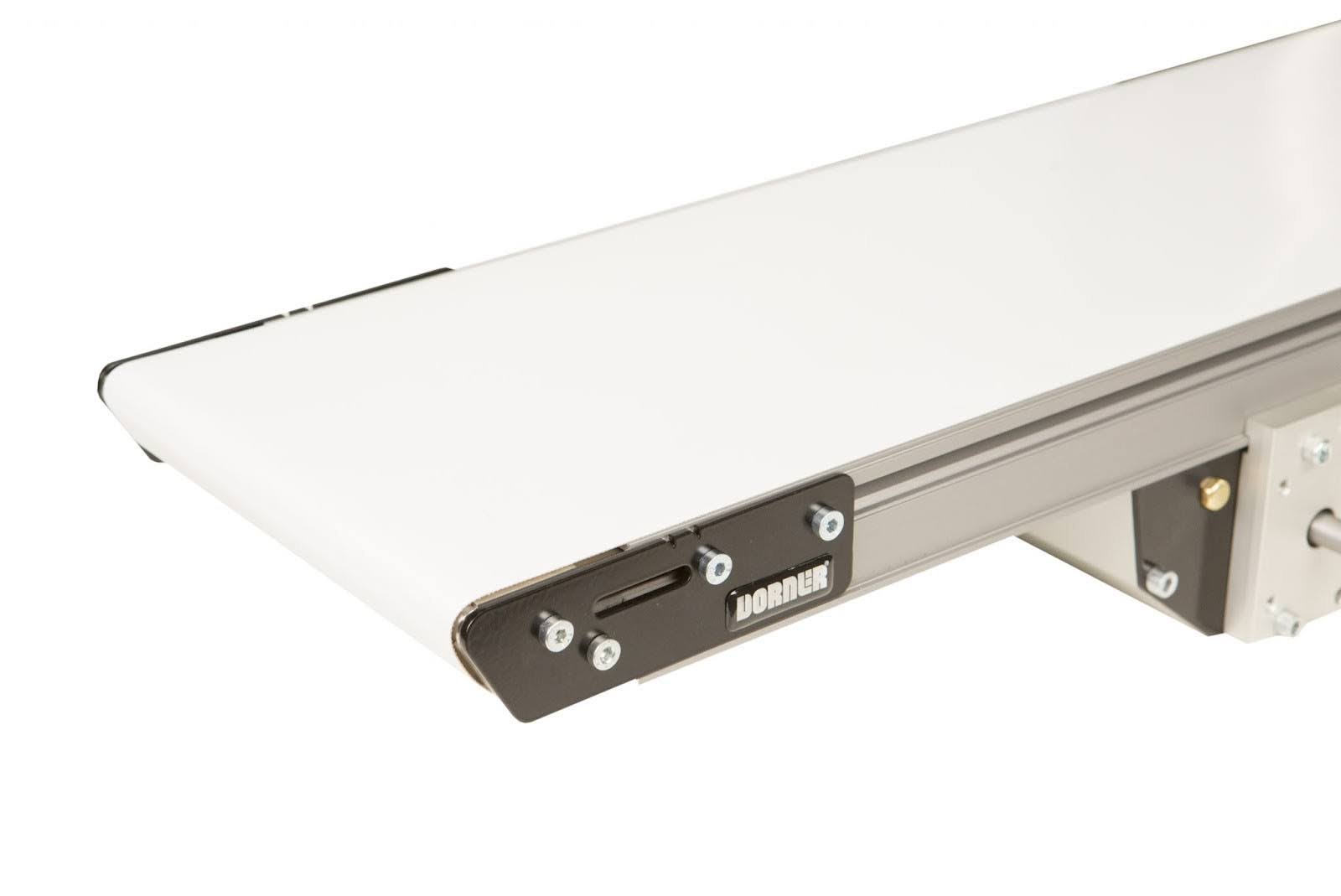

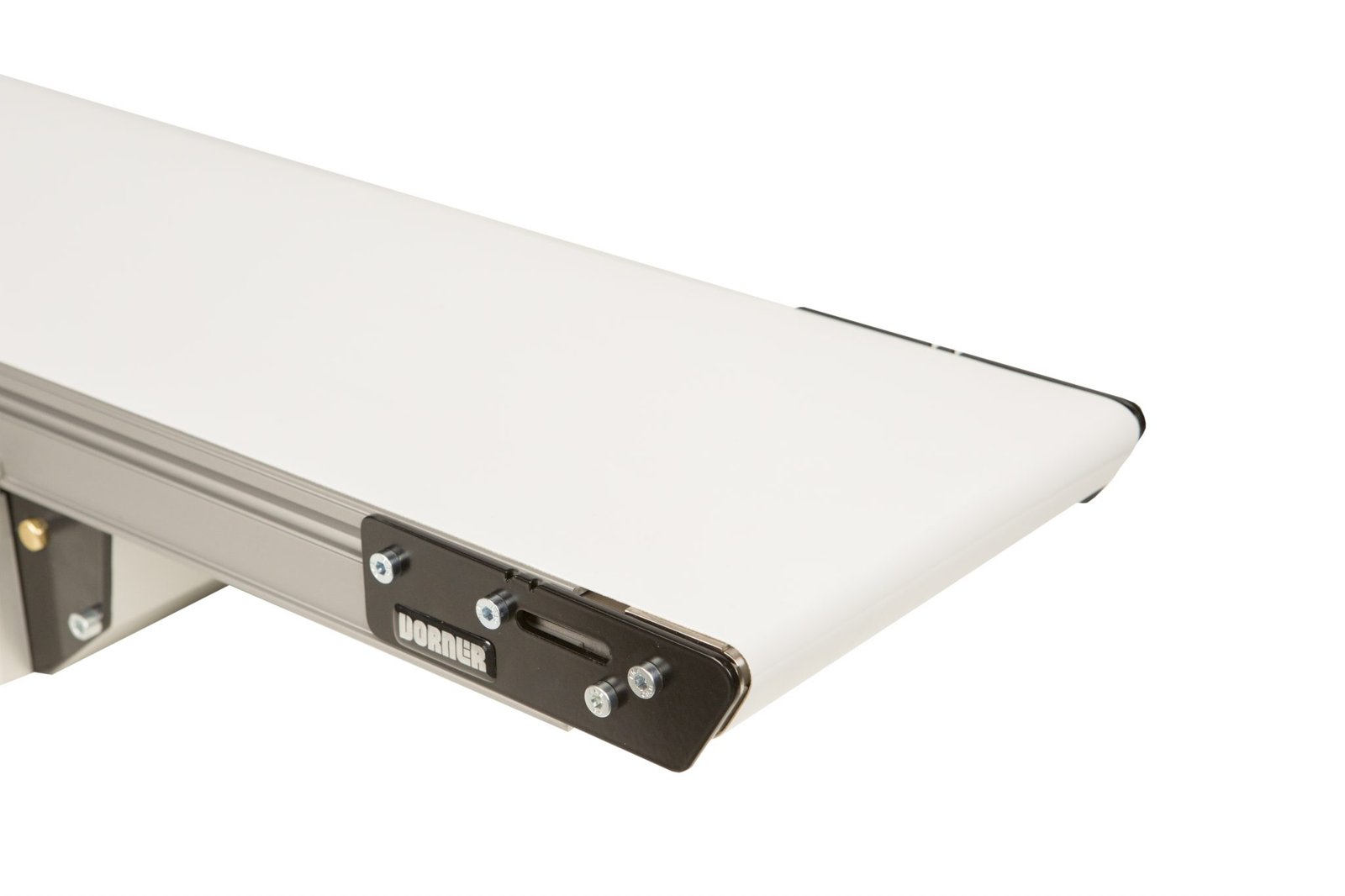

2200 Low Profile Conveyors
Low-profile, high-performance fabric and modular belt conveyors with a durable single-piece frame design, universal T-slots, and a wide range of belting and guiding options.
2200 Series · Belted configuration
- Formats
- Fabric, modular, precision, roller
- Frame
- Low-profile aluminium
- Layout
- Straight, incline, nose-over, Z-frame
02 Platform overview
One low-profile platform, four distinct ways to move.
The 2200 Series is suited to small-to-medium part handling, transfers, accumulation, precision movement, incline or decline routing, positioning, and automated or manual assembly.
Select the conveyor configuration first. Dimensional limits, loads and speeds differ between belted, modular belt, Precision Move and gravity roller models.
03 Configurations
Choose by movement and application.
Specifications below are tied to each configuration and should not be applied to the entire 2200 platform.
Modular belt
Modular Belt
An open, ladder-style frame supporting airflow, cooling and drainage, with open-mesh, closed-mesh and cleated options.
- Widths
- 76–610 mm
- Lengths
- 457–9,144 mm
- Load
- Up to 68 kg
- Speed
- Up to 76 m/min
Positive drive

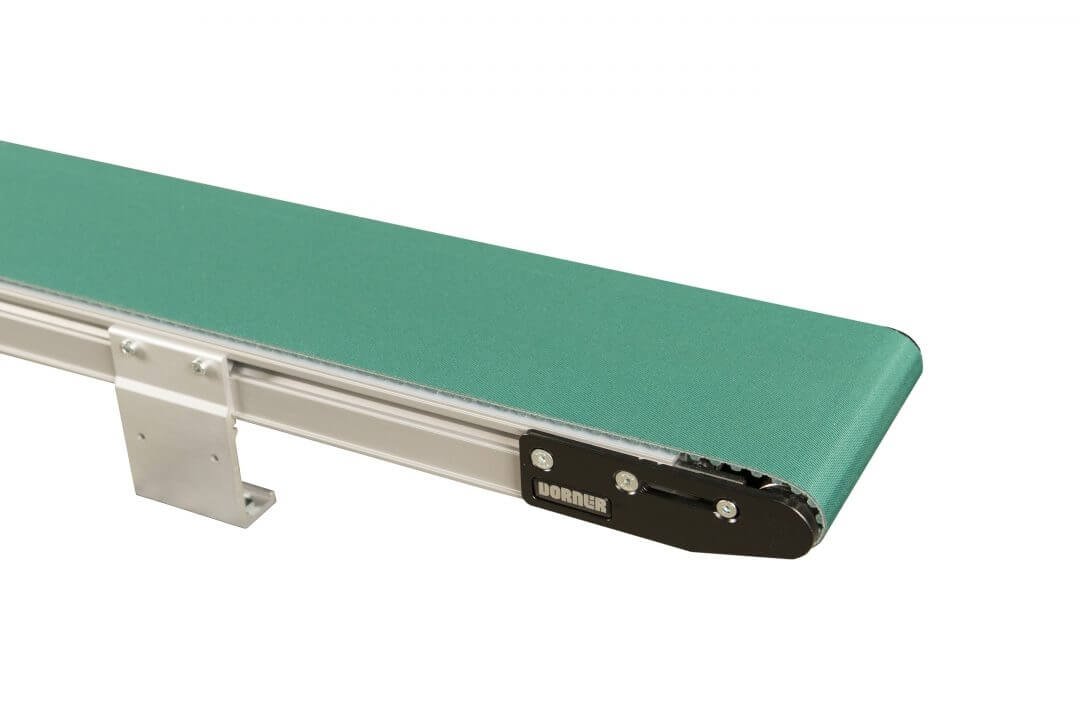

Precision Move
Positively driven belting for precision indexing, timed conveying, robotic pick-and-place and machine integration.
- Widths
- 25–610 mm
- Lengths
- 457–9,144 mm
- Load
- Up to 91 kg
- Mechanical accuracy
- ±0.51 mm
Non-powered
Gravity Roller
A single-piece low-profile frame with anodised aluminium rollers and multiple roller-centre options.
- Widths
- 152 / 305 / 457 / 610 mm
- Lengths
- 610–3,658 mm
- Load
- Up to 119 kg/m
- Rollers
- 25 mm diameter
04 Platform benefits
Designed for low maintenance and accurate movement.
The platform’s benefits centre on consistent belt tracking, controlled tensioning and application-specific configuration.
Positive belt tracking
V-guiding provides positive belt tracking, including under demanding side-load applications.
Controlled tensioning
Rack-and-pinion belt tensioning supports precise adjustment.
Reduced routine maintenance
Sealed-for-life bearings are part of the low-maintenance platform design.
Configuration flexibility
Universal T-slots, belt choices, guiding, drive and layout options support application-specific builds.
05 Technical comparison
Configuration specifications
Published maximums depend on the selected model, drive, belt and layout. Confirm the final engineered configuration before purchase.
| Specification | Belted | LPZ | Modular | Precision Move | Gravity Roller |
|---|---|---|---|---|---|
| Width | 44–914 mm | 203–610 mm | 76–610 mm | 25–610 mm | 152 / 305 / 457 / 610 mm |
| Length | 457–7,315 mm | 1,097–4,000 mm | 457–9,144 mm | 457–9,144 mm | 610–3,658 mm |
| Maximum load | 54 kg | 30 kg | 68 kg | 91 kg | 119 kg/m |
| Maximum speed | 122 m/min | 57 m/min | 76 m/min | 113 m/min | Non-powered |
| Drive models | End, mid, centre | Configuration dependent | End, centre, iDrive | End, mid and multiple drive packages | Not applicable |
